ROCKARMOR GT HOOP BULLBAR FRONTAL COMBO PACK TO SUIT ISUZU DMAX 08/2020+

ROCKARMOR GT HOOP BULLBAR FRONTAL COMBO PACK TO SUIT ISUZU DMAX 08/2020+

Regular price $3,800.00 NZD
Regular price $3,950.00 NZD Sale price $3,800.00 NZD
Sale Sold out

Please contact us to confirm stock levels if your in a hurry as some items may take 6-8 weeks to arrive

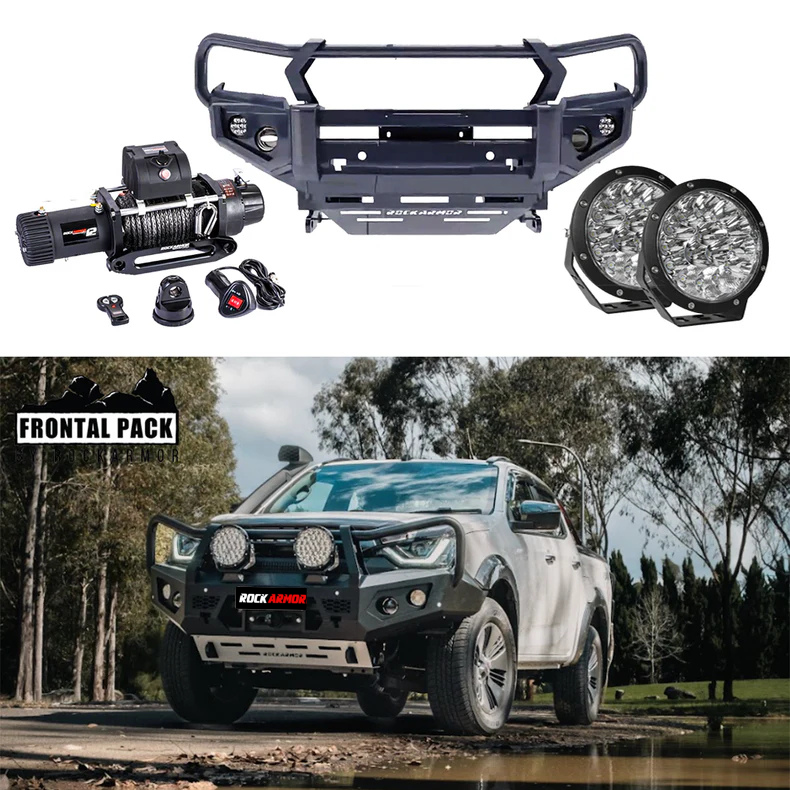

GT Bullbar Offroad Frontal Pack Isuzu Dmax 2020+

Rockarmor GT Steel Hoop Bullbar (No bumper cut required)

Rockarmor 12,000 pound Winch (wireless controller & synthetic winch rope)

Rockarmor 9" LED Phantom Spotlights - (with wiring loom and internal switch)

FITTING VIDEO BELOW

GT BULLBAR (NO BUMPER CUT REQUIRED FOR THIS VEHICLE)

Designed & tested in Australia, Rockarmor’s GT Steel Bullbar provides your vehicle with the ultimate vehicle frontal protection. Making sure air flow to the engine is maintained, the Rockarmor GT bullbar is manufactured out of 3mm steel and features a 50mm diameter cross bar which protects the full front of the vehicle against any potential animal strikes that may harm areas like your head lights, front grill and engine components.

Designed to be functional for vehicles that drive both on road & off road, the GT bullbar has been engineered to store vital accessories such as a Winch, UHF Antenna, safety flags, driving lights plus allowance of a high lift jack recovery. The design of the GT bullbar was also designed to give you maximum approach angle  when offroading and enhanced your truck with a aggressive offroad look.

The GT bullbar comes complete with L.E.D fog lights, L.E.D indicators, under body stone guards and is finished with a high quality powder coat that will withstand harsh weather conditions. 100% ADR Compliant, and Air Bag approved, Rockarmor’s GT bull bar is put through a strict set of tests that gives you confidence your vehicle will be protected at all times.

Bull Bar Features:

  • 50mm tube 3mm Steel
  • Bulit in recovery points
  • Twin high lift jack points
  • Twin Slotted Antenna Mounts
  • Winch Compatible
  • Winch plate & Mounting Cradle 2 in 1 System
  • LED indicators + Day light running light & FOG LIGHT included
  • Centre bash plate included
  • Stone guard splash plates included
  • Pre drilled Holes for driving lights
  • ADR Complied (Locally tested in Adelaide Australia)

ROCKARMOR PHANTOM 9" LED DRIVING LIGHTS

Rockarmor’s latest innovation, the Phantom 9 Lights are rugged off-road champions designed to light up the darkest highways and remote tracks, offering unparalleled performance and durability. Built to withstand the harshest conditions, these lights are dustproof and waterproof, ensuring reliability in any environment! Experience exceptional long-distance visibility, providing you with the confidence to conquer any terrain!

TECHY STUFF

  • IP RATING: IP68
  • DISTANCE: 1 LUX @ 1400 METRES
  • POWER: 396 WATTS PER PAIR
  • LED TYPE: 33 X OSRAM LEDS
  • COLOUR TEMP: 6500K
  • LUMENS: 13,000 EFFECTIVE LUMENS
  • FRAME: FULLY ADJUSTABLE 60 DEGREE ALUMINIUM FRAME
  • LENS: POLYCARBONATE
  • COOLING: HIGH SPEED PASSIVE COOLING SYSTEM
  • DAY LIGHT RUNNING LIGHT: BUILT IN

WHATS IN THE BOX

  • MOUNTING HARDWARE
  • PHANTOM COVERS
  • 2 X LED DRIVING LIGHTS
  • WIRING HARNESS WITH INTERNAL SWITCH



ROCKARMOR RECOVERY M8 12,000 Pound Winch

  • 5 Year Manufacturers Warranty
  • 7.2HP Motor
  • IP67 Rated (2 Hours Fully Submersible)
  • Wireless Controller (inbuilt receiver)
  • Controller with Extension Lead
  • Rockarmor Alloy Hawse Fairlead
  • Synthetic Winch Rope Pro Link
  • Control Box Mounting Bracket
  • Hand Saver Strap
  • Installation Guide Book

Specification

  • Line Pull:  5,443kgs / 12,000lbs
  •   Motor: Series Wound DC12V / 7.2HP
  • Gear Train: 3 Stage Planetary
  • Gear Ratio: 216:1
  • Free Spooling Clutch with Rotating Gear Ring
  • IP67 Rated (2 Hours Fully Submersible
  • Installation Guide Book
  • Synthetic Winch Rope: 9.5mm x 28 metres
  • Wireless Receiver: Built into the Control Box
  • Isolator Switch: Built into the Control Box
  • Drum Size: 64mm x 224mm
  • Weight of Winch: 26kgs
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Dimensions: 535 X 162 X 170MM
  • Warranty: 5 Years Limited Electrical & Mechanical

Combo Wieght:120kg

INSTALLATION

Rockarmor New Zealand will not warrant their winch if the following are not followed:

  1. The installation of our winches is conducted by an qualified electrician
  2. A separate isolation switch be installed to prevent draw from the battery when not in use.
  3. Misuse of the winch

Rockarmor New Zealand will not warrant their spotlight if the following are not followed:

  1. The installation of our winches is conducted by an qualified electrician
  2. Misuse of the spotlight

To comply with NZTA all daytime running lights should be installed separately to your headlights. Also note that the fog lights need to be adjusted to three degrees down.

If your vehicle's suspension is not upgraded to withstand 60-100kgs, we do recommend that you upgrade the suspension, especially in the front of the vehicle to withstand the weight of the Steel Bumper & optional winch (if an electric winch is installed with the bull bar) If your vehicle's suspension is not upgraded, or if you are running factory suspension, your front suspension will sag and the ride will become bumpy which can possibly lead to further damage.

We recommend when fitting the bull bar to leave a minimum 10-15mm gap between the bullbar and body of the vehicle. This will allow for movement where the chassis & body move independently.
