ROCKARMOR GT HOOP STEEL BULLBAR TO SUIT TOYOTA 200 2015+
ROCKARMOR GT HOOP STEEL BULLBAR TO SUIT TOYOTA 200 2015+

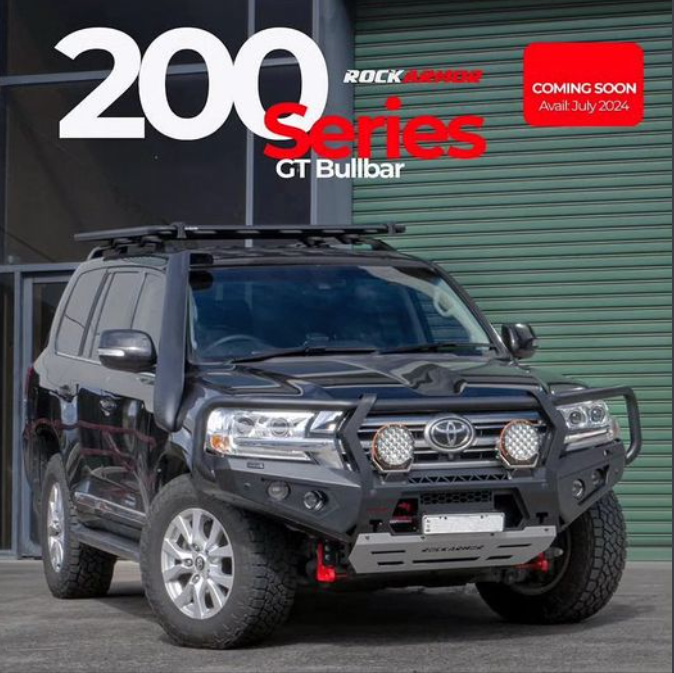

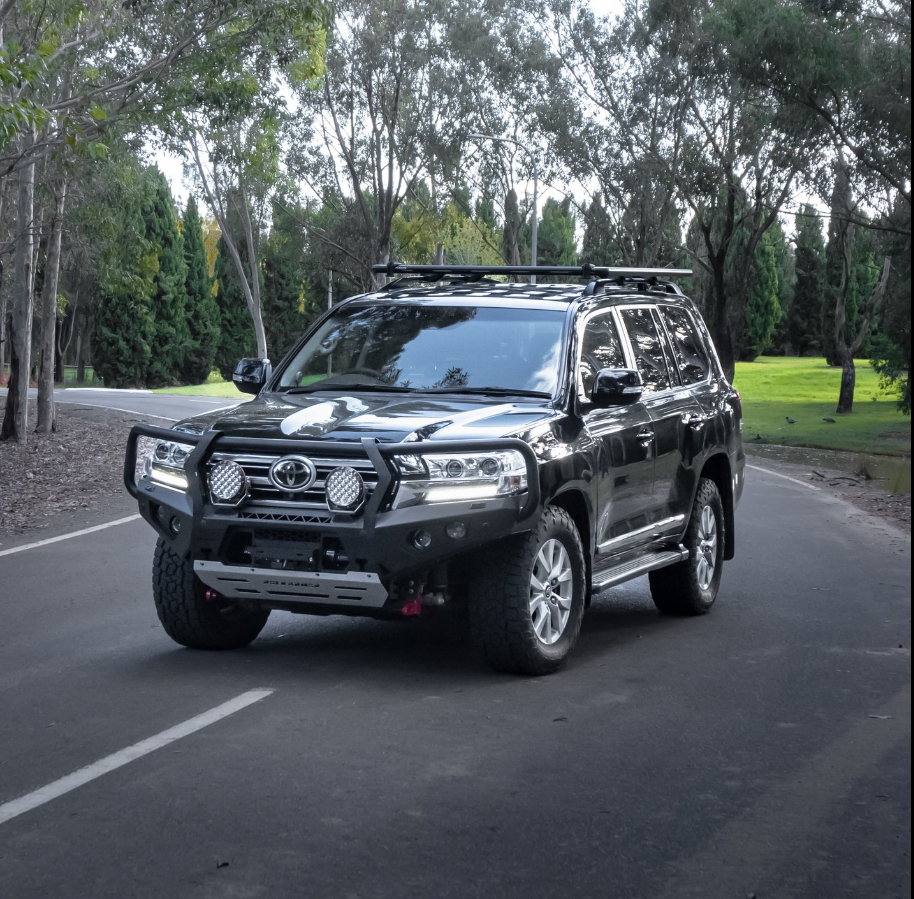

ROCKARMOR GT STEEL BULLBAR TO SUIT TOYOTA LANCRUSIER 200 SERIES 2015+
FITTING VIDEO BELOW
ROCKARMOR'S GT SERIES PROJECT
Designed locally in Australia, Rockarmor's all new GT BullBar series comes with a modern look, suited towards today's late model vehicles, that require maximum protection, while complementing your vehicle's factory modern aesthetics.
As well as offering your Hilux with maximum frontal protection, The Rockarmor GT bullbar has been designed to improve your Hilux's off road experience with a number of features that include, higher approach angles, Built in Rated Recovery points for off road recoveries, and provisions for vital accessories that includes, electric winches, driving lights & uhf communication.
The full bumper replacement Steel bull bar allows you to fit the GT bullbar to your Hilux with out having to cutting the factory bumper. The Rockarmor GT Bullbar, has been engineered to be compatible with your vehicle safety features which include the front safety camera & bumper sensors.
The bullbar is finished in a highly durable black powder coat finish, Optional colour matching is available through your local Rockarmor Distributor.
Features & Specifications:
- Built in 3.2Tonne Rated Recovery Points
- 52 mm Top cross tube for maximum frontal protection
- Durable 2.8mm High Quality steel construction for maximum protection
- Designed for high approach angles
- Built in LED FOG lights & LED Indicator, compatible with factory controls
- Extended centre Bash Plate Included
- ADR Complied Air bag compatible mounting system
- Factory Sensor & Front Camera Compatible
- Replacement Windscreen Washer bottle included
- Side under Protection panels Included
- Twin Slotted Antenna Mounts located on top Cross Tube
- Twin Hi-Lift jack points
- Front Protection Buffers
- Accommodation for Electric Winch up to 12,000 pound
- Laser cut Holes to accommodate for driving lights
- Shot blasted, Chemical Washed
- Finished off in a high quality black powder coat finish
INSTALLATION
To comply with NZTA all daytime running lights should be installed separately to your headlights. Also note that the fog lights need to be adjusted to three degrees down.
If your vehicle's suspension is not upgraded to withstand 60-100kgs, we do recommend that you upgrade the suspension, especially in the front of the vehicle to withstand the weight of the Steel Bumper & optional winch (if an electric winch is installed with the bull bar) If your vehicle's suspension is not upgraded, or if you are running factory suspension, your front suspension will sag and the ride will become bumpy which can possibly lead to further damage.
We recommend when fitting the bull bar to leave a minimum 10-15mm gap between the bullbar and body of the vehicle. This will allow for movement where the chassis & body move independently.
