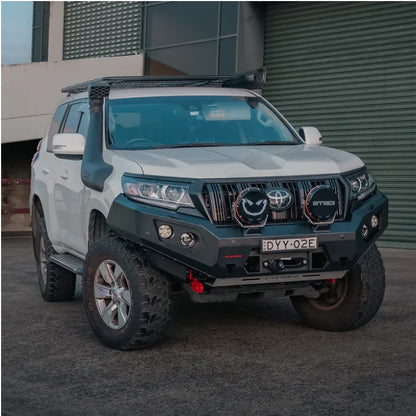

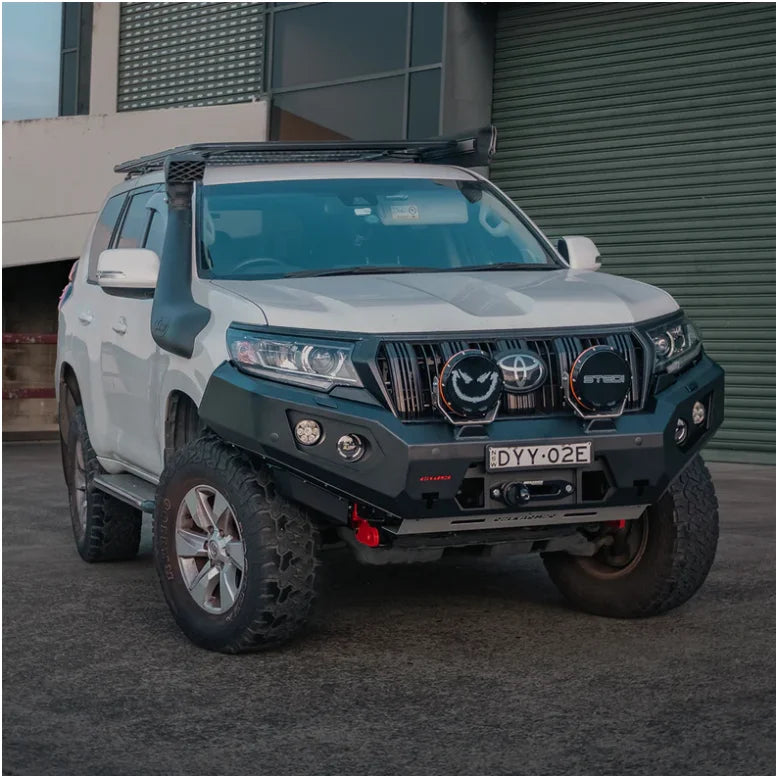

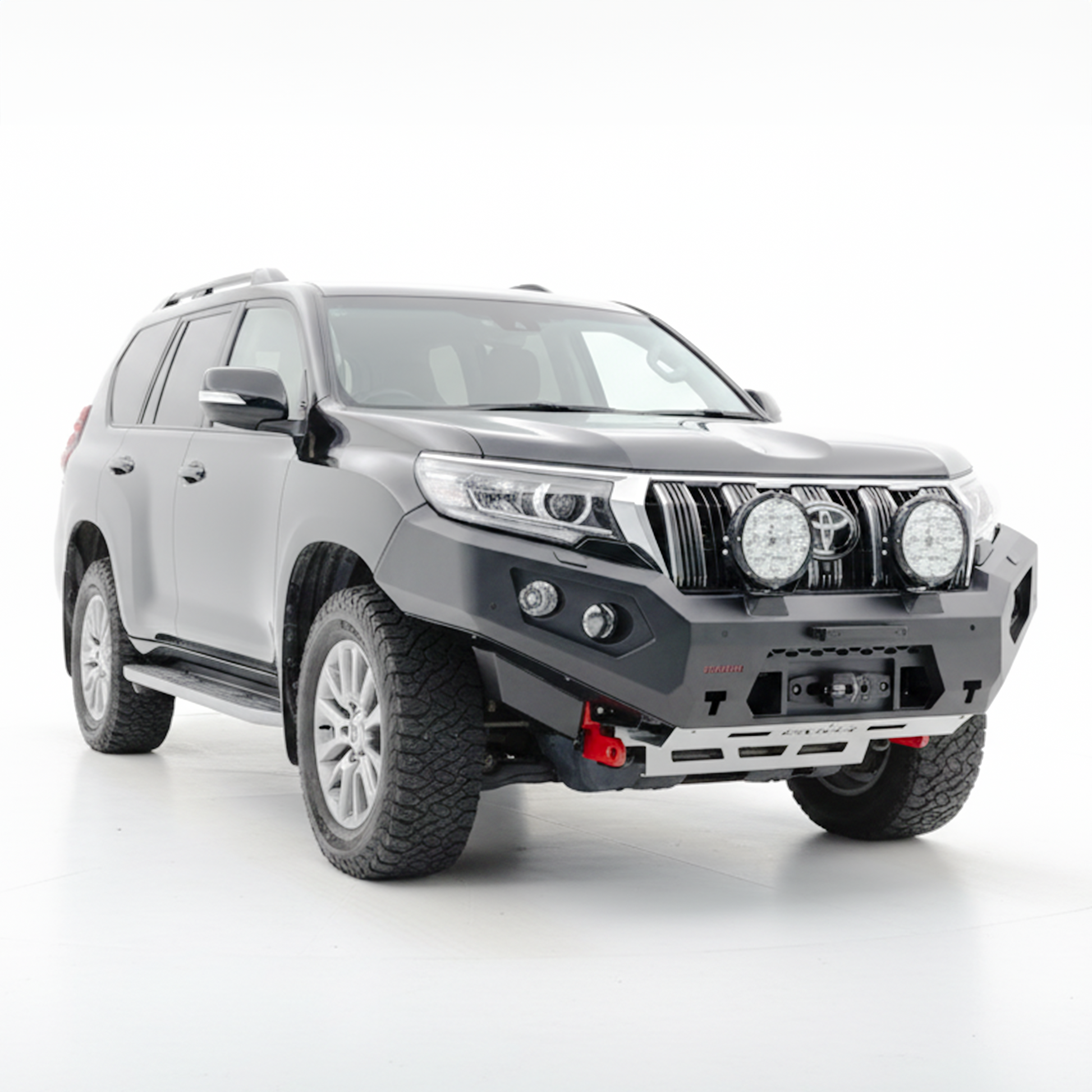

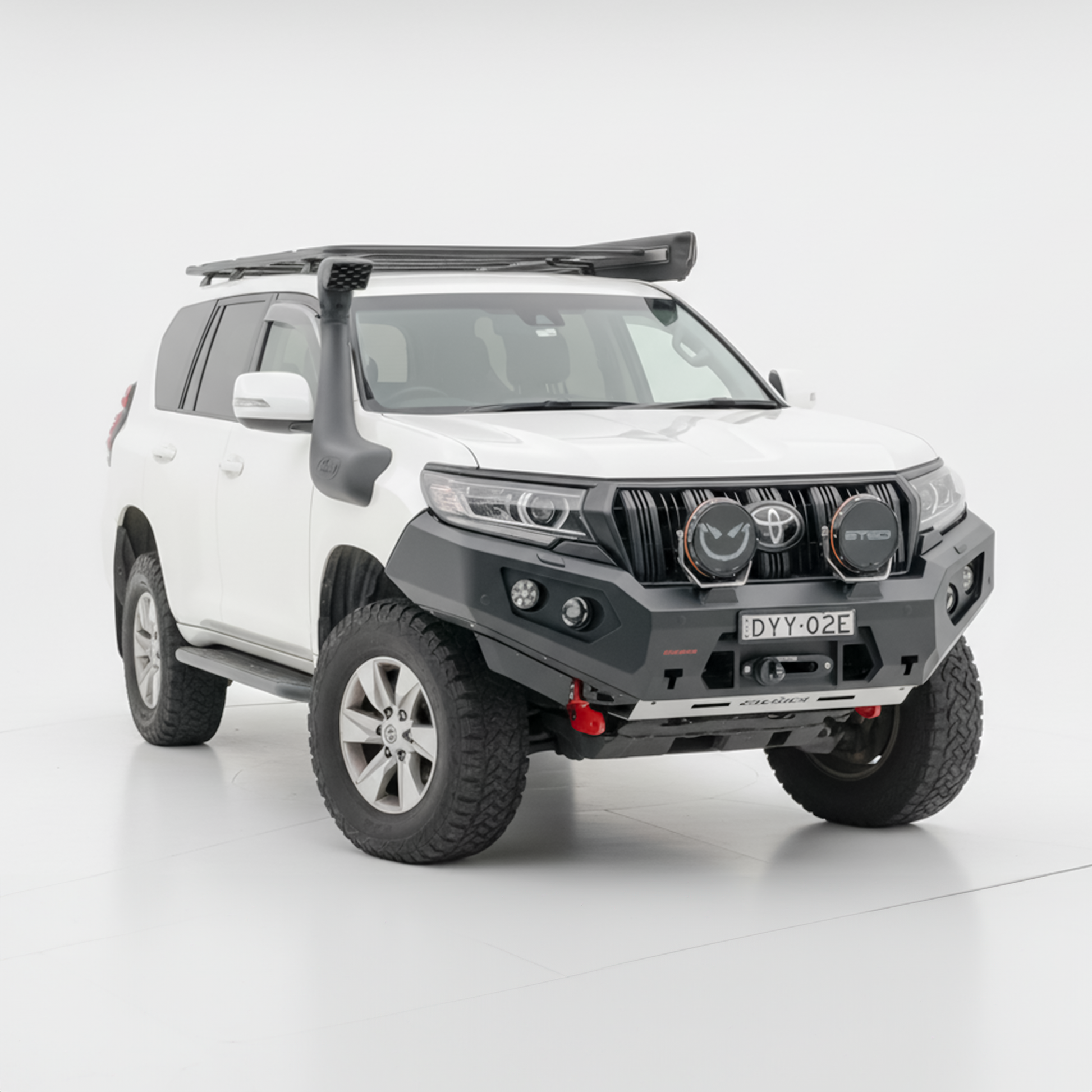

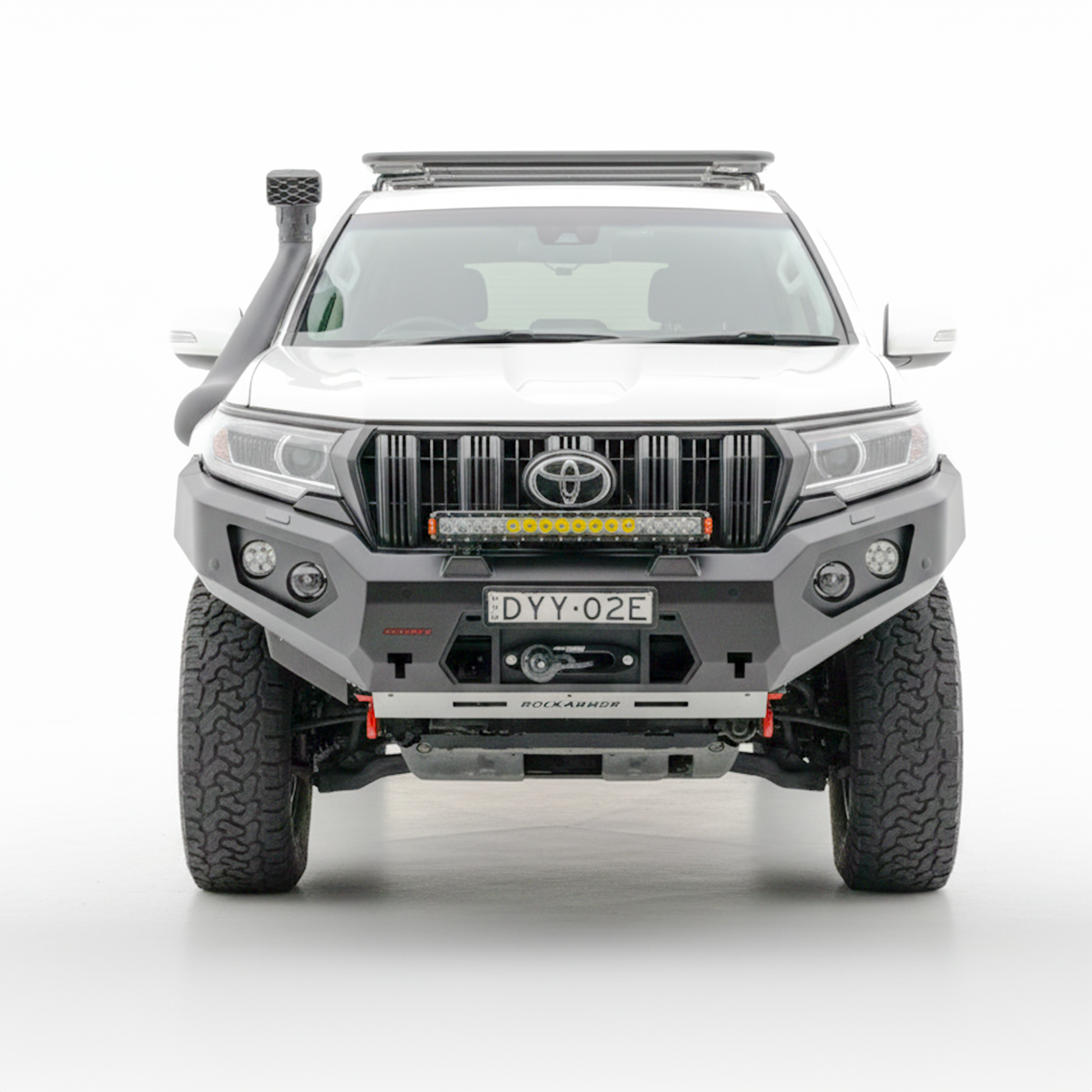

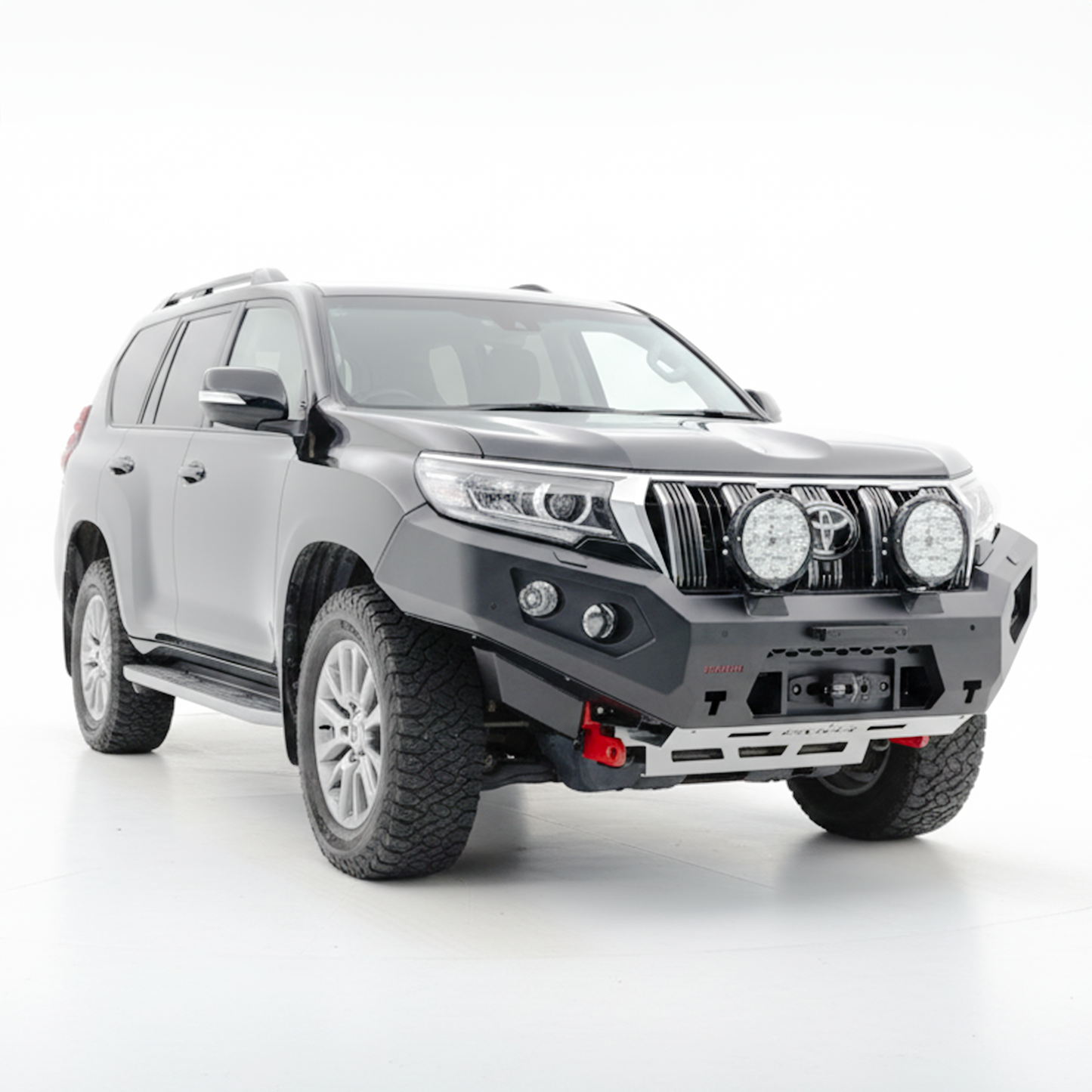

Rockarmor Gt Steel Hoopless Bullbar Combo - Toyota Prado 150 11/2017-Current

ROCKARMOR GT STEEL HOOPLESS BULLBAR COMBO - TOYOTA PRADO 150 11/2017-CURRENT

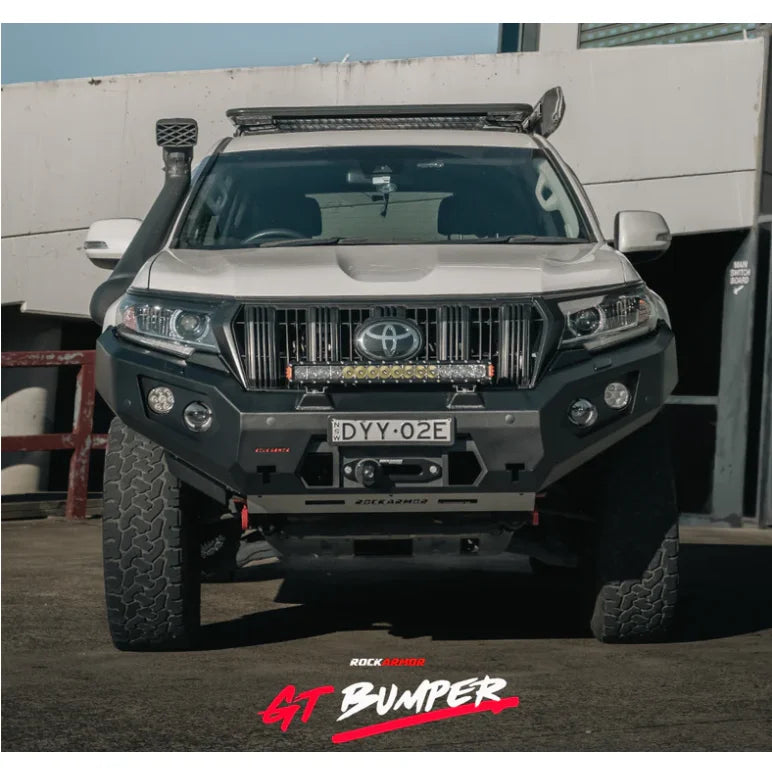

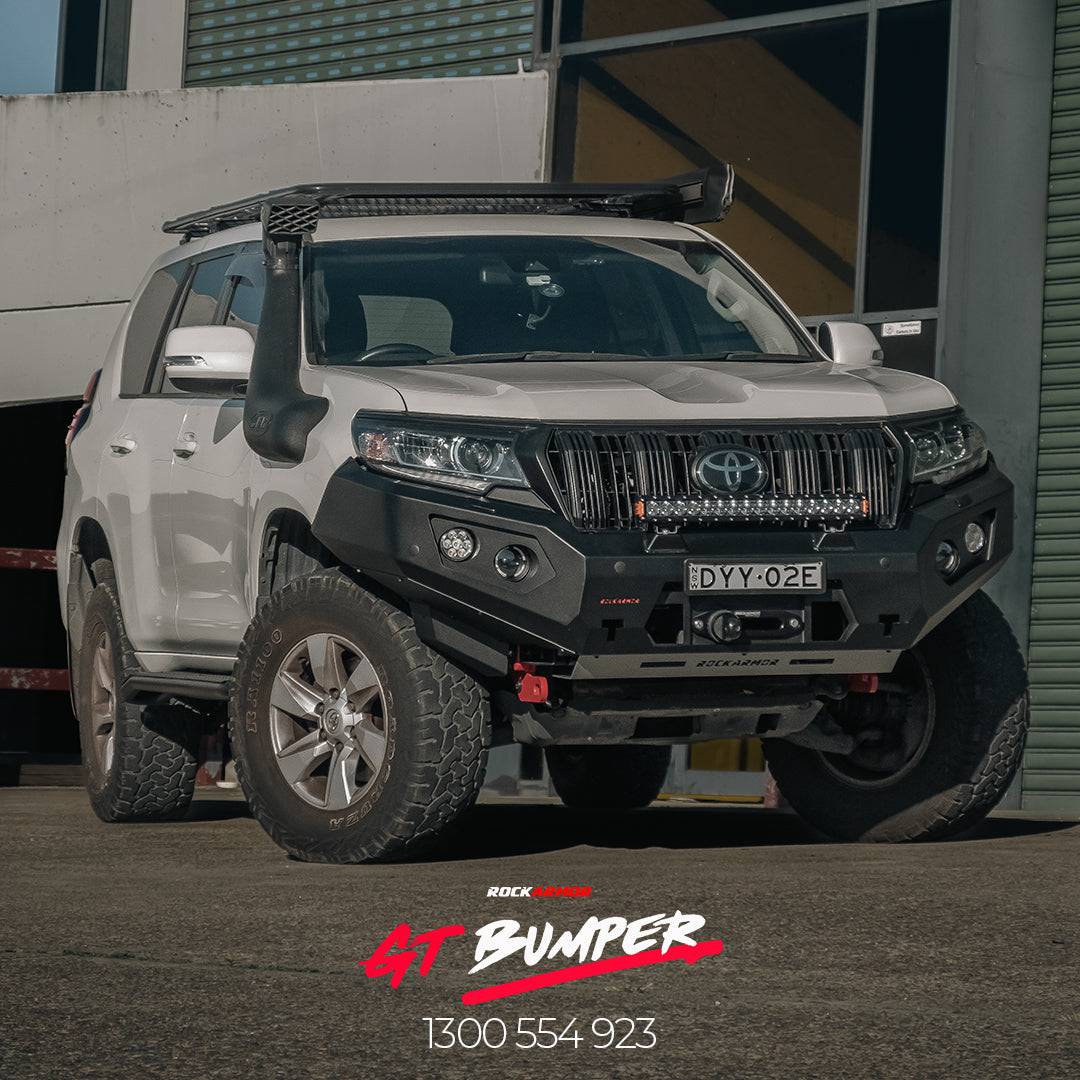

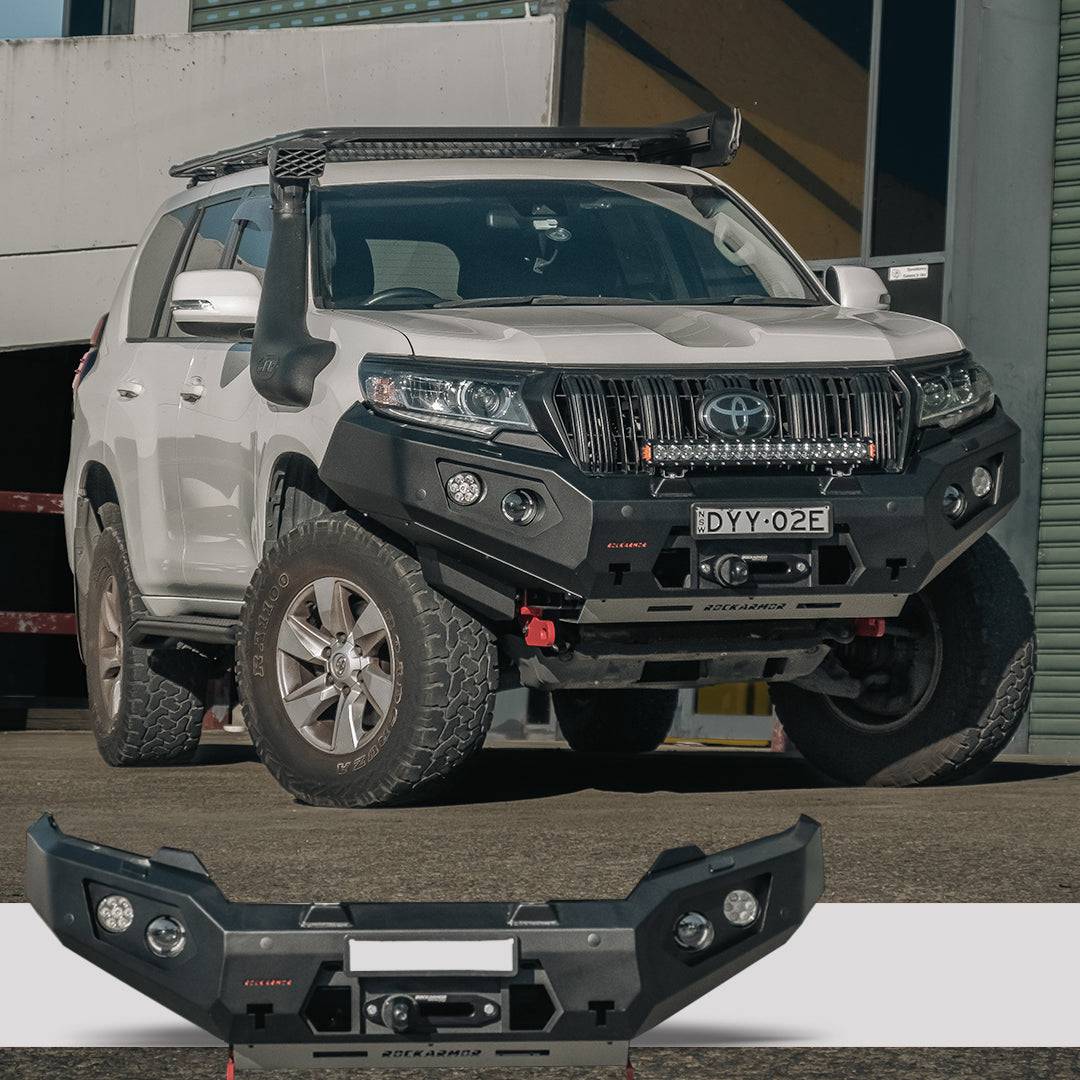

Experience the unrivaled transformation of your Prado with the all-new, GT Bumper from Rockarmor. The number instills a captivating sense of aggression, elevating the appearance of your Prado.

Epuipped with rated recovery points, which cradle and high approach angles, you can rest assure this bumper allow you to tackle any track!

Product features:

• Proudly made in Australia
• Full steel construction, made from 3mm, 4mm and 5mm Steel
• Fits most low mount winches including Warn 12,000
• Included heavy duty Steel radiator support
• Available in Classic Style with 3 hoops (center is 3" and 2" outer tubes)
• Available in Urban Style with centre 3" hoop only
• Available in Winch Bumper Style with no hoops
• ADR Compliant and Airbag Compatible
• Centre bash plate included with included air vents
• Industry bench mark soft lead in for winches with plasma rope (prevents damage to rope when winching at extreme angles)
• Optional winch light
• LED fog lights as standard
• LED indicators as standard
• Removable polycarbonate covers to protect lights
• Standard finish is powder coated Textura Black
• Can colour match to your vehicle (supply VIN when ordering)
• Fog light and indicator are mounted in a Steel box which strengthens the wing
• Perforated mesh in bar and bash plate to aid cooling and airflow
• Hi-Lift jacking points as standard in the bar

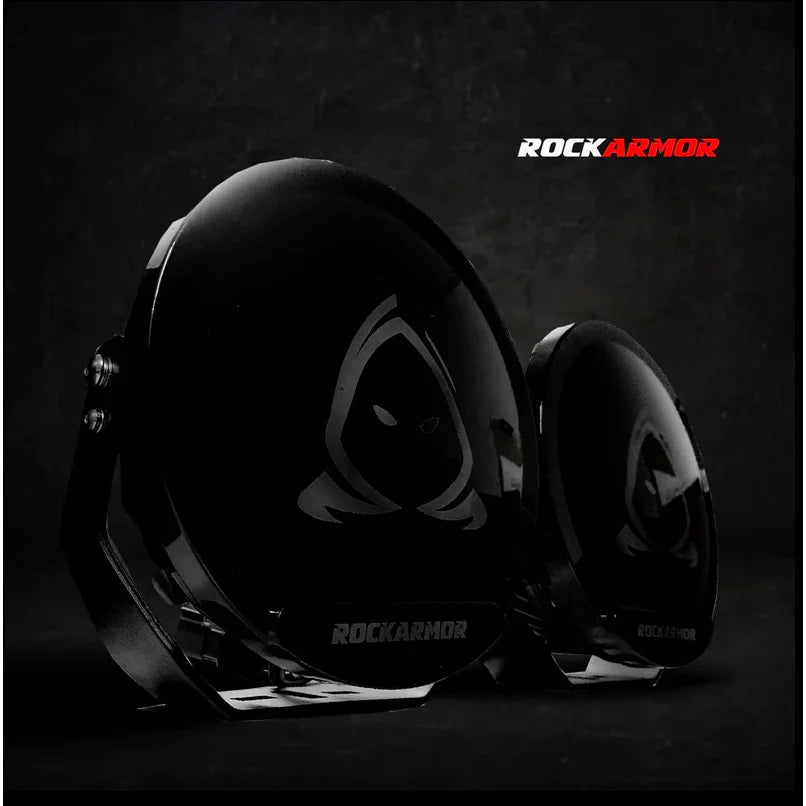

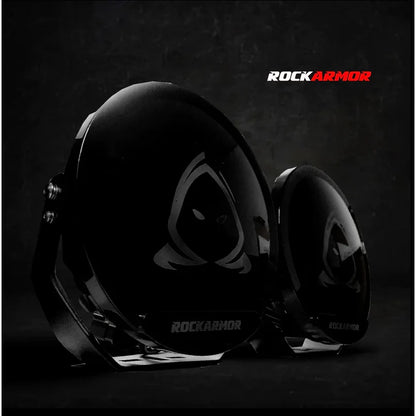

ROCKARMOR PHANTOM 9" LED DRIVING LIGHTS

Rockarmor’s latest innovation, the Phantom 9 Lights are rugged off-road champions designed to light up the darkest highways and remote tracks, offering unparalleled performance and durability. Built to withstand the harshest conditions, these lights are dustproof and waterproof, ensuring reliability in any environment! Experience exceptional long-distance visibility, providing you with the confidence to conquer any terrain!

ROCKARMOR RECOVERY M8 12,000 Pound Winch

• 5 Year Manufacturers Warranty
• 7.2HP Motor
• IP67 Rated (2 Hours Fully Submersible)
• Wireless Controller (inbuilt receiver)
• Controller with Extension Lead
• Rockarmor Alloy Hawse Fairlead
• Synthetic Winch Rope Pro Link
• Control Box Mounting Bracket
• Hand Saver Strap
• Installation Guide Book

TECHY STUFF

• IP RATING: IP68
• DISTANCE: 1 LUX @ 1400 METRES
• POWER: 396 WATTS PER PAIR
• LED TYPE: 33 X OSRAM LEDS
• COLOUR TEMP: 6500K
• LUMENS: 13,000 EFFECTIVE LUMENS
• FRAME: FULLY ADJUSTABLE 60 DEGREE ALUMINIUM FRAME
• LENS: POLYCARBONATE
• COOLING: HIGH SPEED PASSIVE COOLING SYSTEM
• DAY LIGHT RUNNING LIGHT: BUILT IN

Specification

• Installation Guide Book
• Line Pull:  5,443kgs / 12,000lbs
•  Motor: Series Wound DC12V / 7.2HP
• Gear Train: 3 Stage Planetary
• Gear Ratio: 216:
• Free Spooling Clutch with Rotating Gear Ring
• IP67 Rated (2 Hours Fully Submersible)
• Synthetic Winch Rope: 9.5mm x 28 metres
• Wireless Receiver: Built into the Control Box
• Isolator Switch: Built into the Control Box
• Drum Size: 64mm x 224mm
• Weight of Winch: 26kgs
• Mounting Bolt Pattern: 254mm x 114.3mm
• Dimensions: 535 X 162 X 170MM
• Warranty: 5 Years Limited Electrical & Mechanical Combo Wieght:120kg

INSTALLATION

To comply with NZTA all daytime running lights should be installed separately to your headlights. Also note that the fog lights need to be adjusted to three degrees down.

If your vehicle's suspension is not upgraded to withstand 60-100kgs, we do recommend that you upgrade the suspension, especially in the front of the vehicle to withstand the weight of the Steel Bumper & optional winch (if an electric winch is installed with the bull bar) If your vehicle's suspension is not upgraded, or if you are running factory suspension, your front suspension will sag and the ride will become bumpy which can possibly lead to further damage.

We recommend when fitting the bull bar to leave a minimum 10-15mm gap between the bullbar and body of the vehicle. This will allow for movement where the chassis & body move independently.



Fitting time: 2-3 hours

Fitting difficulty: 4/10
