ROCKARMOR PREMIUM BULLBAR FRONTAL COMBO TO SUIT MITSUBISHI TRITON CHALLANGER 2009-2015
ROCKARMOR PREMIUM BULLBAR FRONTAL COMBO TO SUIT MITSUBISHI TRITON CHALLANGER 2009-2015

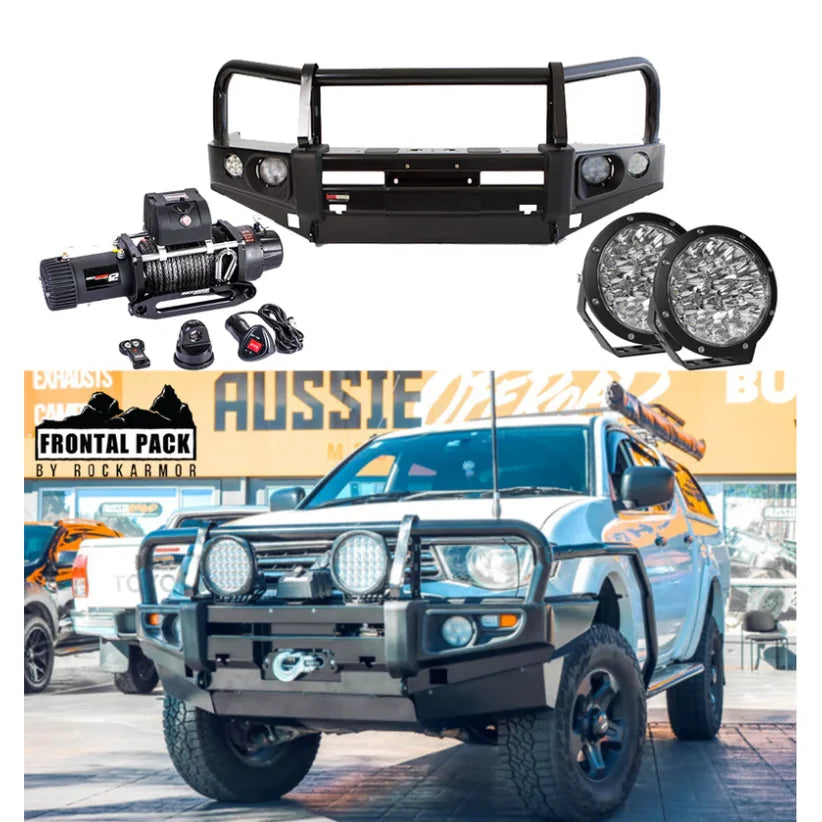

Bullbar Offroad Frontal Pack Mitsubishi Triton Challanger 2009-2015
Rockarmor Steel Premium Bullbar (No bumper cut required)
Rockarmor 12,000 pound Winch (wireless controller & synthetic winch rope)
Rockarmor 9" LED Phantom Spotlights - (with wiring loom and internal switch)
PREMIUM BULLBAR (BUMPER CUT REQUIRED FOR THIS VEHICLE)
Features:
- 63mm tube 3mm Steel
- Twin high lift jack points
- Twin Slotted Antenna Mounts
- Winch Compatible
- Winch plate & Mounting Cradle 2 in 1 System
- LED INDICATOR & FOG LIGHT included
- Bumper Guard included
- Stone guard splash plates included
- Pre drilled Holes for driving lights
- ADR Complied (Locally tested in Adelaide Australia)
Designed & tested in Australia, Rockarmor’s Premium Series Steel Bull Bar has been engineered to provide your vehicle with maximum frontal protection. The Rockarmor bull bar is manufactured from premium grade 3mm steel and features a 63mm diameter cross tube, protecting your vehicles vital exterior components from potential animal strikes.
Designed to be functional for vehicles that drive both on road & off road, the Bull Bar has been engineered to store optional 4wd accessories, that include a Winch, UHF Antenna, safety flags and driving lights.
The Rockarmor Bull Bar is finished with a high quality powder coat that will withstand Australia’s harsh weather conditions and comes complete with L.E.D fog lights, L.E.D indicators, splash plates, bumper guards as well as provisions for high lift jack use.
Rockarmor’s full range of bull bars are Australian tested in the State of Adelaide, where they are put through a strict set of tests, making them ADR Complied & Air Bag Compatible, giving you full confidence your vehicle will be protected at all times.
ROCKARMOR PHANTOM 9" LED DRIVING LIGHTS
Rockarmor’s latest innovation, the Phantom 9 Lights are rugged off-road champions designed to light up the darkest highways and remote tracks, offering unparalleled performance and durability. Built to withstand the harshest conditions, these lights are dustproof and waterproof, ensuring reliability in any environment! Experience exceptional long-distance visibility, providing you with the confidence to conquer any terrain!
TECHY STUFF
- IP RATING: IP68
- DISTANCE: 1 LUX @ 1400 METRES
- POWER: 396 WATTS PER PAIR
- LED TYPE: 33 X OSRAM LEDS
- COLOUR TEMP: 6500K
- LUMENS: 13,000 EFFECTIVE LUMENS
- FRAME: FULLY ADJUSTABLE 60 DEGREE ALUMINIUM FRAME
- LENS: POLYCARBONATE
- COOLING: HIGH SPEED PASSIVE COOLING SYSTEM
- DAY LIGHT RUNNING LIGHT: BUILT IN
WHATS IN THE BOX
- MOUNTING HARDWARE
- PHANTOM COVERS
- 2 X LED DRIVING LIGHTS
- WIRING HARNESS WITH INTERNAL SWITCH
ROCKARMOR RECOVERY M8 12,000 Pound Winch
- 5 Year Manufacturers Warranty
- 7.2HP Motor
- IP67 Rated (2 Hours Fully Submersible)
- Wireless Controller (inbuilt receiver)
- Controller with Extension Lead
- Rockarmor Alloy Hawse Fairlead
- Synthetic Winch Rope Pro Link
- Control Box Mounting Bracket
- Hand Saver Strap
- Installation Guide Book
Specification
- Installation Guide Book
- Line Pull: 5,443kgs / 12,000lbs
- Motor: Series Wound DC12V / 7.2HP
- Gear Train: 3 Stage Planetary
- Gear Ratio: 216:
- Free Spooling Clutch with Rotating Gear Ring
- IP67 Rated (2 Hours Fully Submersible)
- Synthetic Winch Rope: 9.5mm x 28 metres
- Wireless Receiver: Built into the Control Box
- Isolator Switch: Built into the Control Box
- Drum Size: 64mm x 224mm
- Weight of Winch: 26kgs
- Mounting Bolt Pattern: 254mm x 114.3mm
- Dimensions: 535 X 162 X 170MM
- Warranty: 5 Years Limited Electrical & Mechanical
Combo Wieght:120kg
INSTALLATION
Rockarmor New Zealand will not warrant their winch if the following are not followed:
- The installation of our winches is conducted by an qualified electrician
- A separate isolation switch be installed to prevent draw from the battery when not in use.
- Misuse of the winch
Rockarmor New Zealand will not warrant their spotlight if the following are not followed:
- The installation of our winches is conducted by an qualified electrician
- Misuse of the spotlight
To comply with NZTA all daytime running lights should be installed separately to your headlights. Also note that the fog lights need to be adjusted to three degrees down.
If your vehicle's suspension is not upgraded to withstand 60-100kgs, we do recommend that you upgrade the suspension, especially in the front of the vehicle to withstand the weight of the Steel Bumper & optional winch (if an electric winch is installed with the bull bar) If your vehicle's suspension is not upgraded, or if you are running factory suspension, your front suspension will sag and the ride will become bumpy which can possibly lead to further damage.
We recommend when fitting the bull bar to leave a minimum 10-15mm gap between the bullbar and body of the vehicle. This will allow for movement where the chassis & body move independently.
