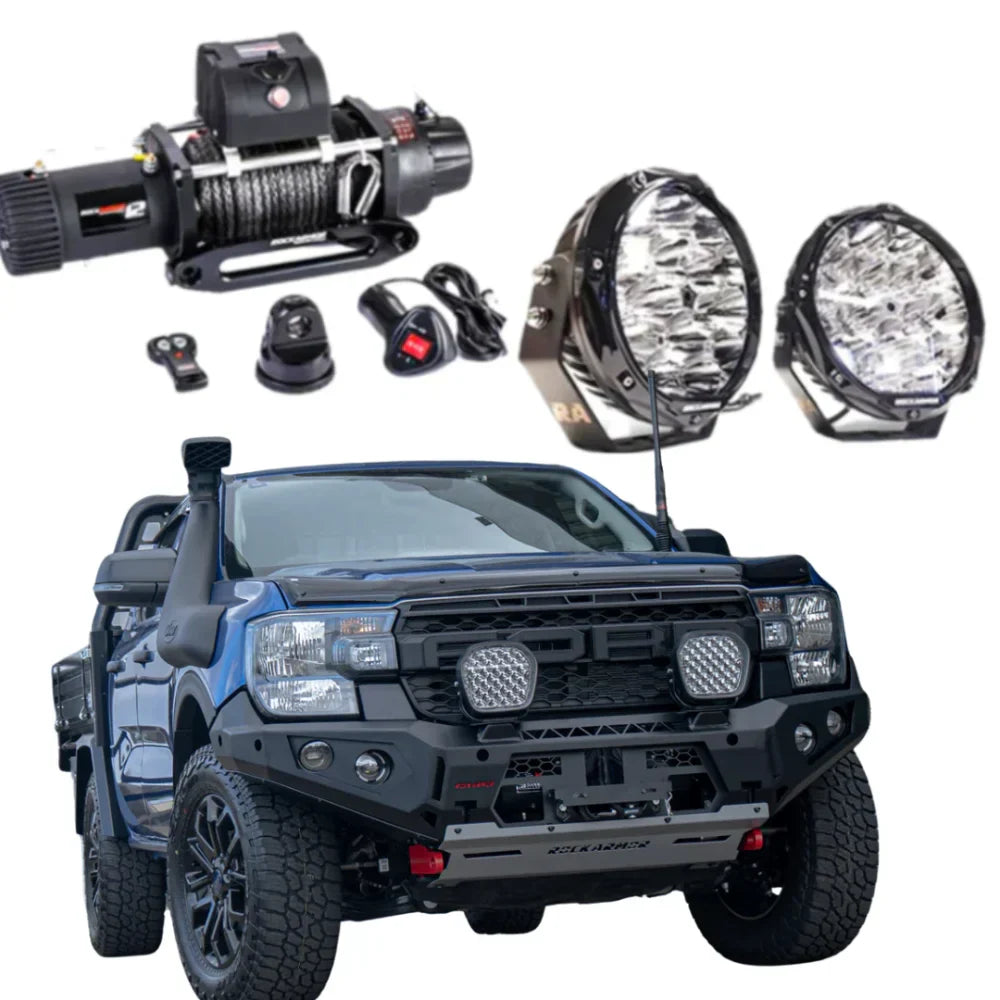

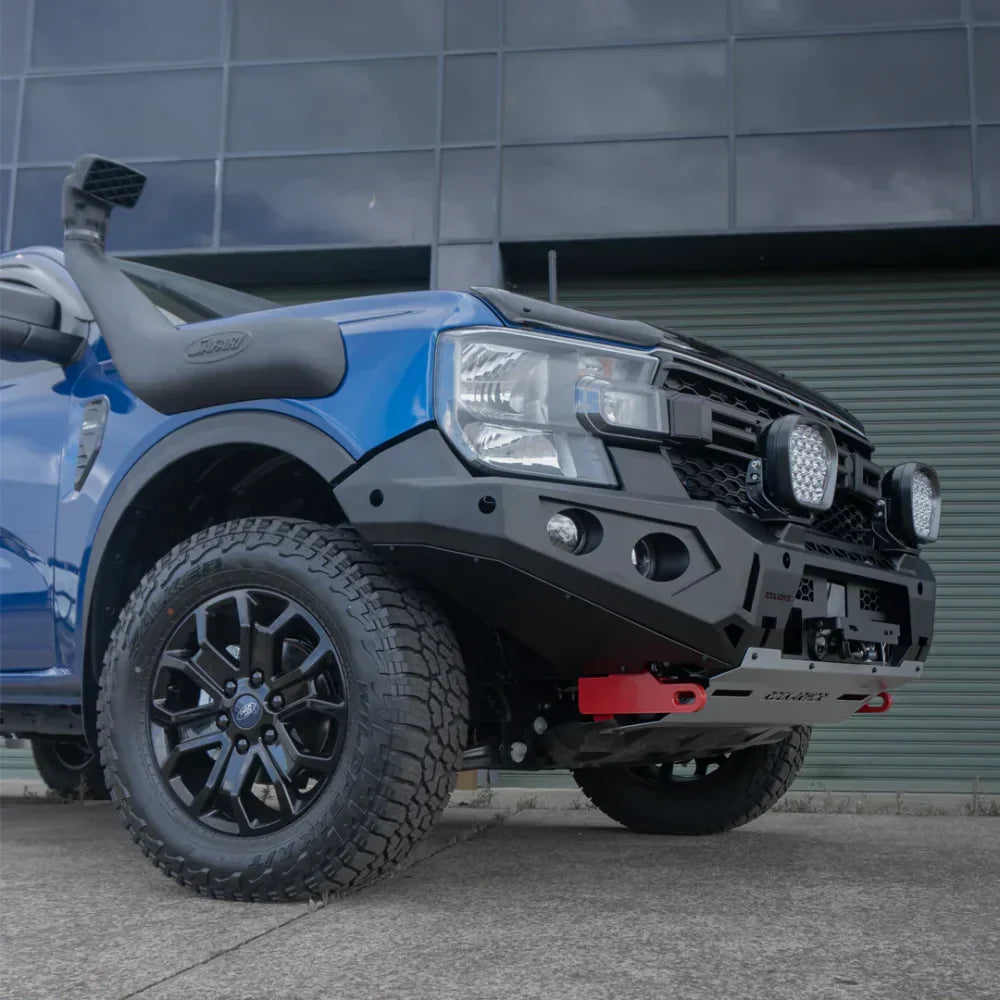

Rockarmor Steel Gt Hoopless Bull Bar Combo - Ranger Everest Next Gen 2022+ (Full Bar Replacement)

ROCKARMOR STEEL GT HOOPLESS BULL BAR COMBO - RANGER NEXT GEN 2022+ (FULL BAR REPLACEMENT)

Does not include parking sensor bracket

Also Fits Everest 22+

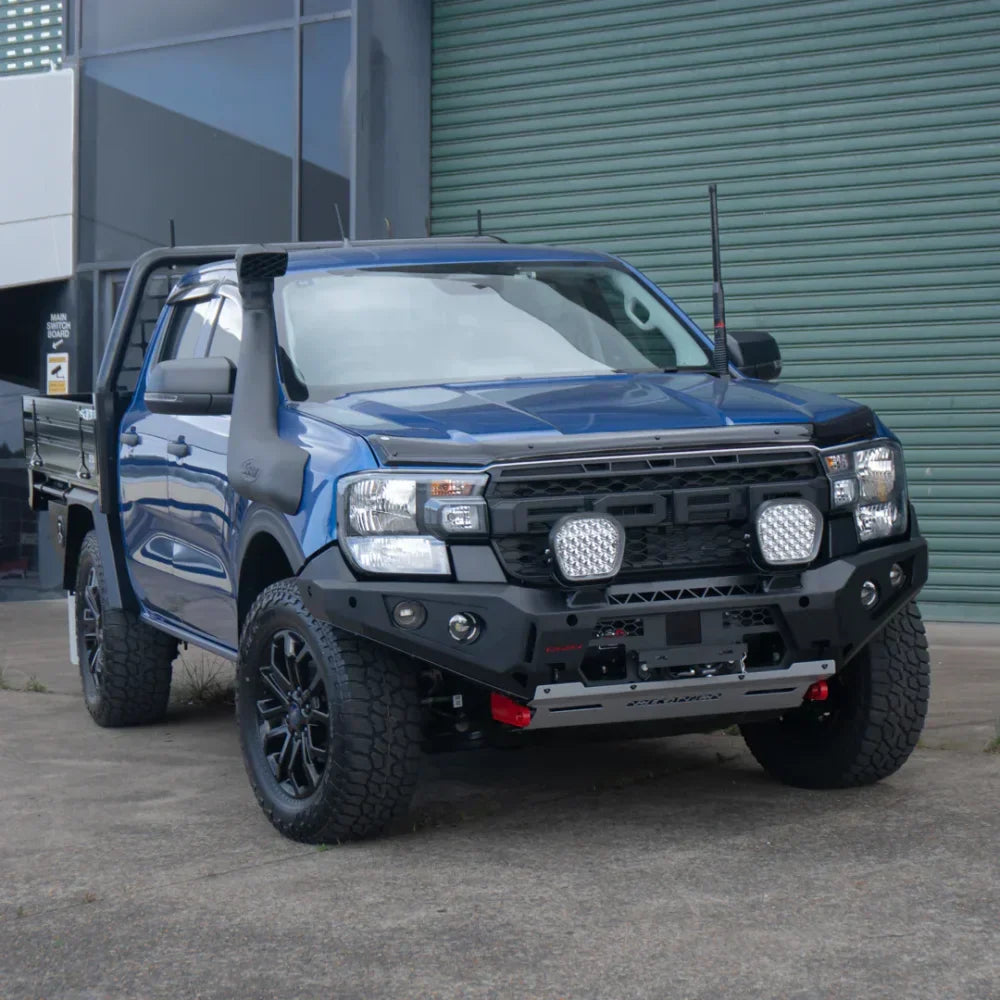

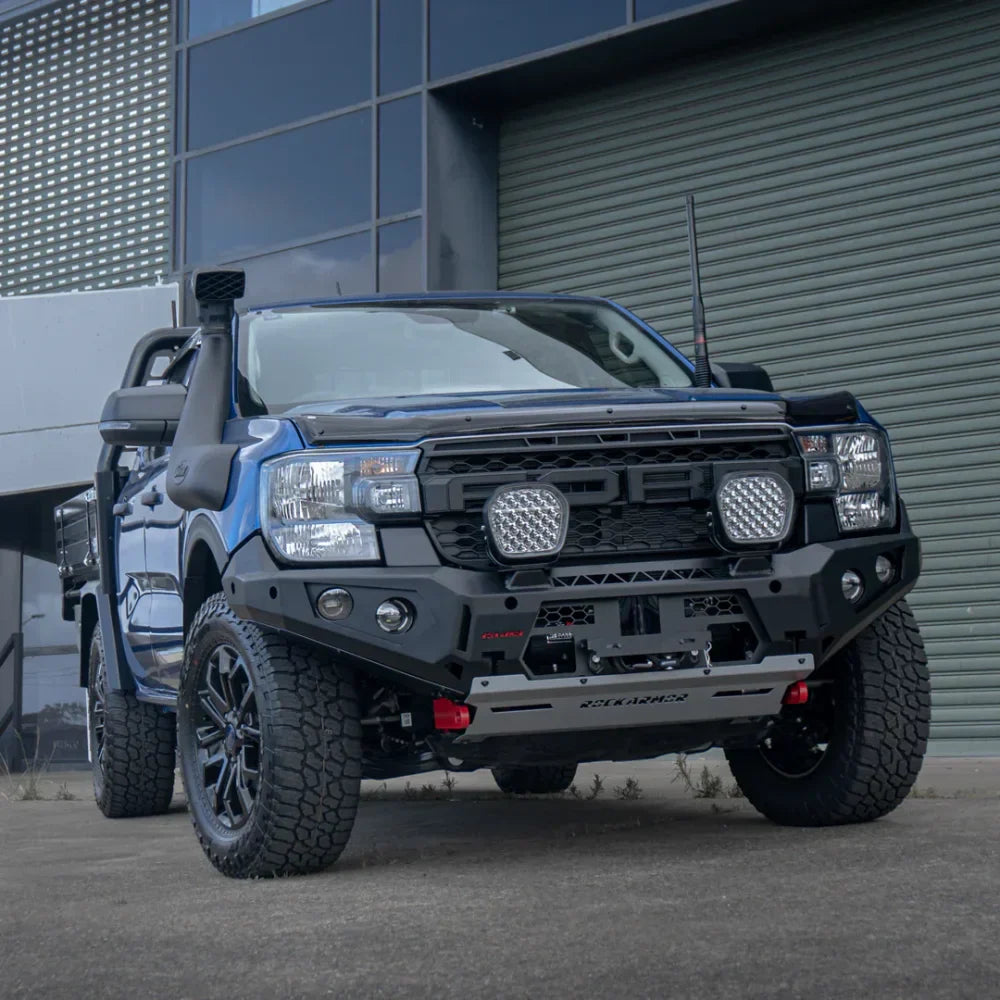

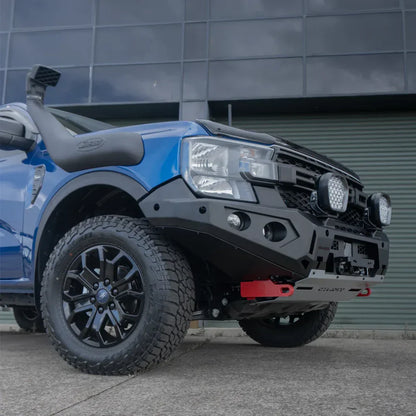

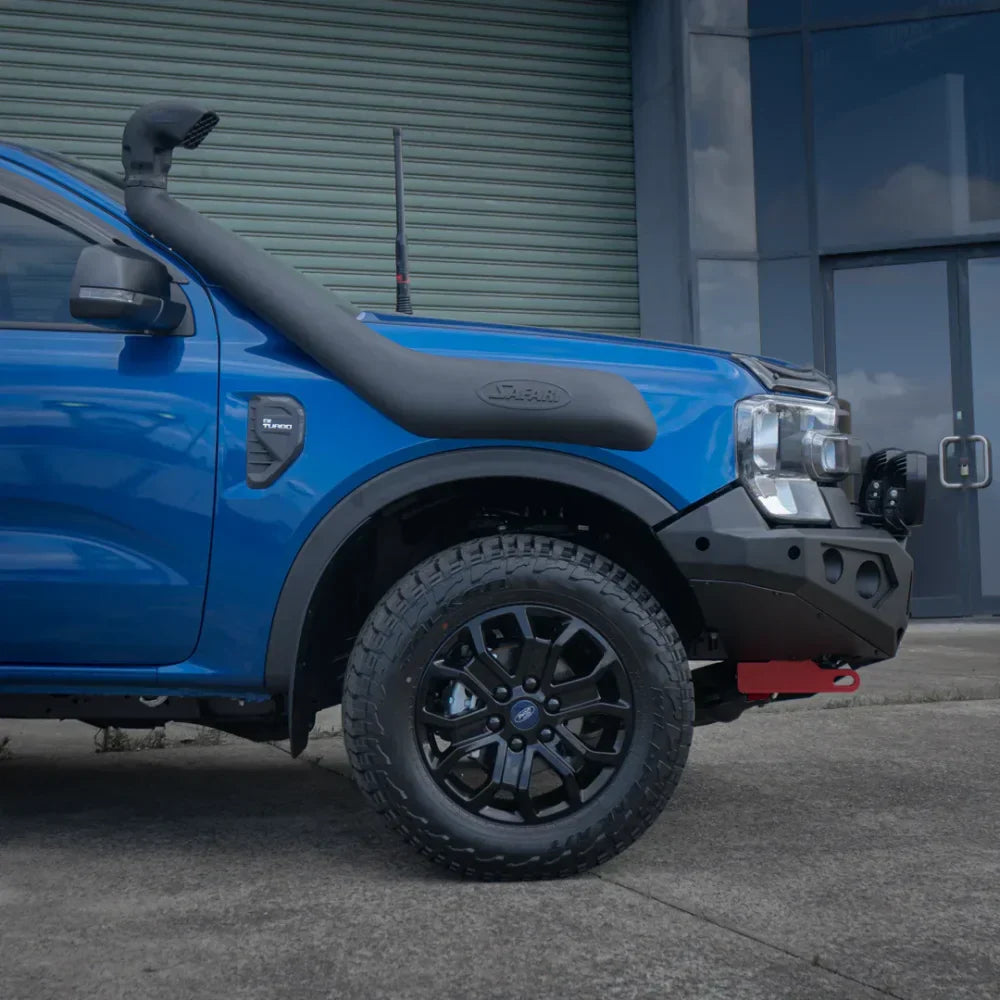

Designed & Tested in Australia, Rockarmor’s design team left no stone unturned, ensuring the Next Gen Ford Raptor GT bull bar would cater for the true 4x4 enthusiast.

With a combination of aggressive lines & sleek touches, which is sure to seek attention from fellow car lovers, Rockarmor’s engineers intergrated every essential feature that benefits all Ford Raptor owners for all types of terrains & situations they may encounter

The Rockarmor GT Bumper, has been engineered to be compatible with your vehicle's safety features, which include the front safety camera & bumper sensors. The GT Bumper is finished in a highly durable black powder coat finish, Optional colour matching is available through your local Rockarmor Distributor.

Next Gen Ford Ranger GT Bumper Features:

• Full Bumper Replacement
• Air Bag Compatible
• ADR Approved
• Parking Sensor Compatible
• Tech Pack Compatible
• Built-in LED Fog Lights & Indicators
• E-Coated + Powder Coated (Matte Black textured finish)
• Winch Compatible
• External Driving Light Mounts
• Internal Mounting Space for LED Light Bar
• High Lift Jack Compatible
• High Approach Angles
• Mounting Hole for Antenna
• Built-in Rated Recovery Points
• Built in Bash Plate

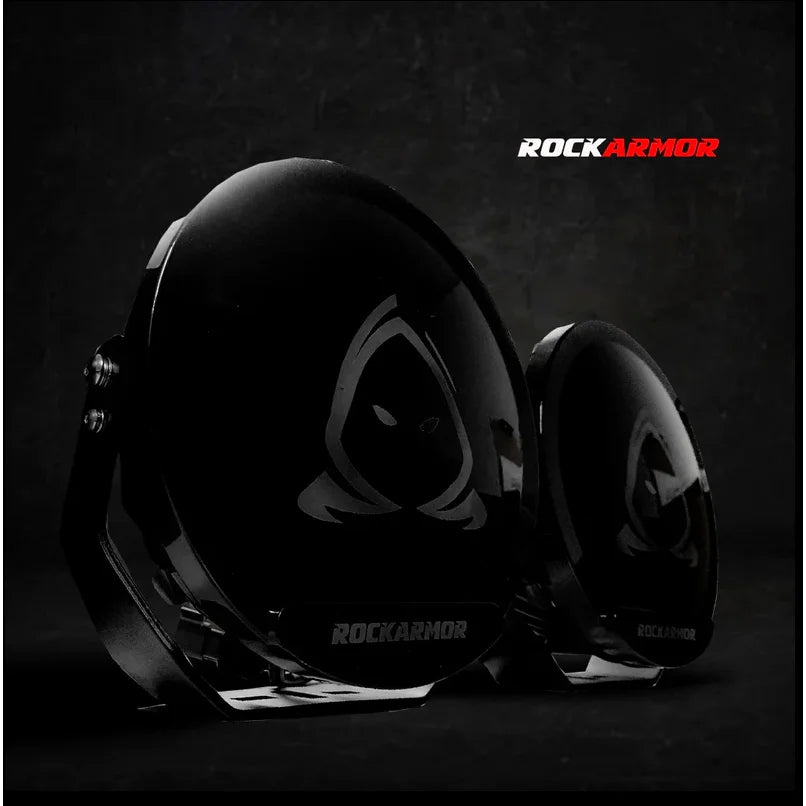

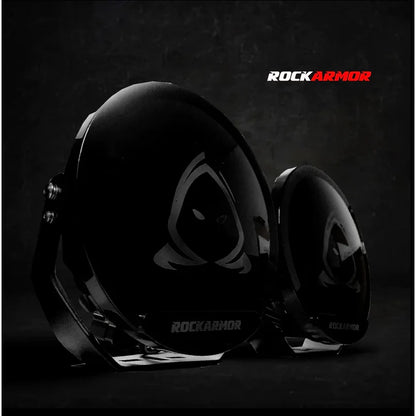

• ROCKARMOR PHANTOM 9" LED DRIVING LIGHTS

  Rockarmor’s latest innovation, the Phantom 9 Lights are rugged off-road champions designed to light up the darkest highways and remote tracks, offering unparalleled performance and durability. Built to withstand the harshest conditions, these lights are dustproof and waterproof, ensuring reliability in any environment! Experience exceptional long-distance visibility, providing you with the confidence to conquer any terrain!

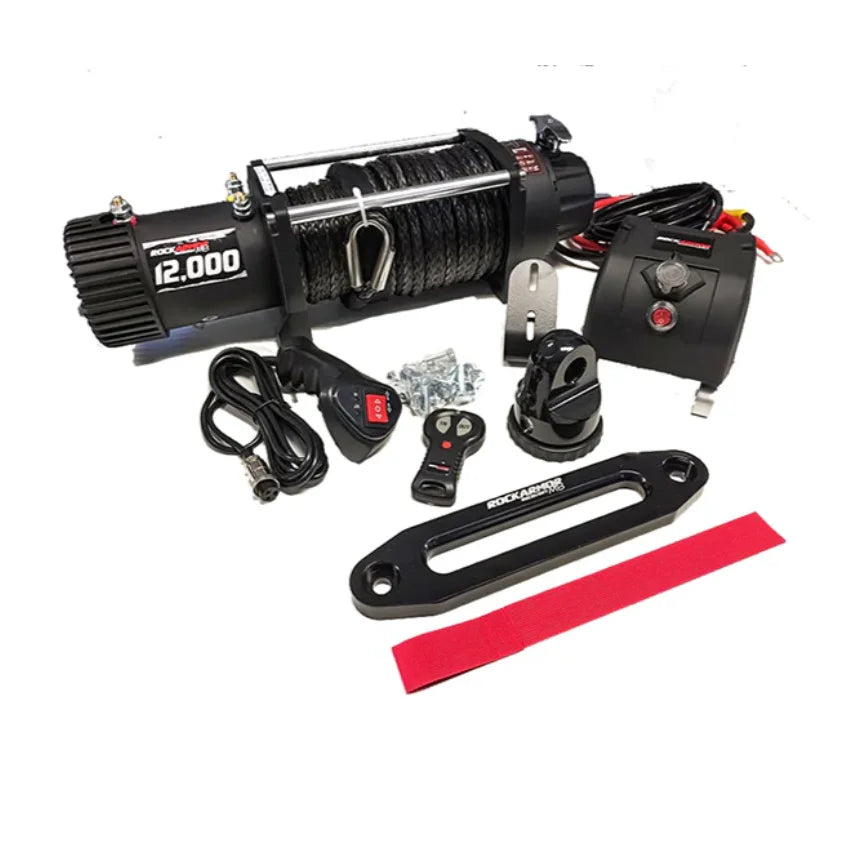

  ROCKARMOR RECOVERY M8 12,000 Pound Winch

  • 5 Year Manufacturers Warranty
  • 7.2HP Motor
  • IP67 Rated (2 Hours Fully Submersible)
  • Wireless Controller (inbuilt receiver)
  • Controller with Extension Lead
  • Rockarmor Alloy Hawse Fairlead
  • Synthetic Winch Rope Pro Link
  • Control Box Mounting Bracket
  • Hand Saver Strap
  • Installation Guide Book

  TECHY STUFF

  • IP RATING: IP68
  • DISTANCE: 1 LUX @ 1400 METRES
  • POWER: 396 WATTS PER PAIR
  • LED TYPE: 33 X OSRAM LEDS
  • COLOUR TEMP: 6500K
  • LUMENS: 13,000 EFFECTIVE LUMENS
  • FRAME: FULLY ADJUSTABLE 60 DEGREE ALUMINIUM FRAME
  • LENS: POLYCARBONATE
  • COOLING: HIGH SPEED PASSIVE COOLING SYSTEM
  • DAY LIGHT RUNNING LIGHT: BUILT IN

  Specification

  • Installation Guide Book
  • Line Pull:  5,443kgs / 12,000lbs
  •  Motor: Series Wound DC12V / 7.2HP
  • Gear Train: 3 Stage Planetary
  • Gear Ratio: 216:
  • Free Spooling Clutch with Rotating Gear Ring
  • IP67 Rated (2 Hours Fully Submersible)
  • Synthetic Winch Rope: 9.5mm x 28 metres
  • Wireless Receiver: Built into the Control Box
  • Isolator Switch: Built into the Control Box
  • Drum Size: 64mm x 224mm
  • Weight of Winch: 26kgs
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Dimensions: 535 X 162 X 170MM
  • Warranty: 5 Years Limited Electrical & Mechanical Combo Wieght:120kg

INSTALLATION

To comply with NZTA, all daytime running lights should be installed separately to your headlights. Also note that the fog lights need to be adjusted to three degrees down.

If your vehicle's suspension is not upgraded to withstand 60-100kgs, we do recommend that you upgrade the suspension, especially in the front of the vehicle to withstand the weight of the Steel Bumper & optional winch (if an electric winch is installed with the bull bar) If your vehicle's suspension is not upgraded, or if you are running factory suspension, your front suspension will sag and the ride will become bumpy which can possibly lead to further damage.

We recommend when fitting the bull bar to leave a minimum 10-15mm gap between the bullbar and body of the vehicle. This will allow for movement where the chassis & body move independently.
